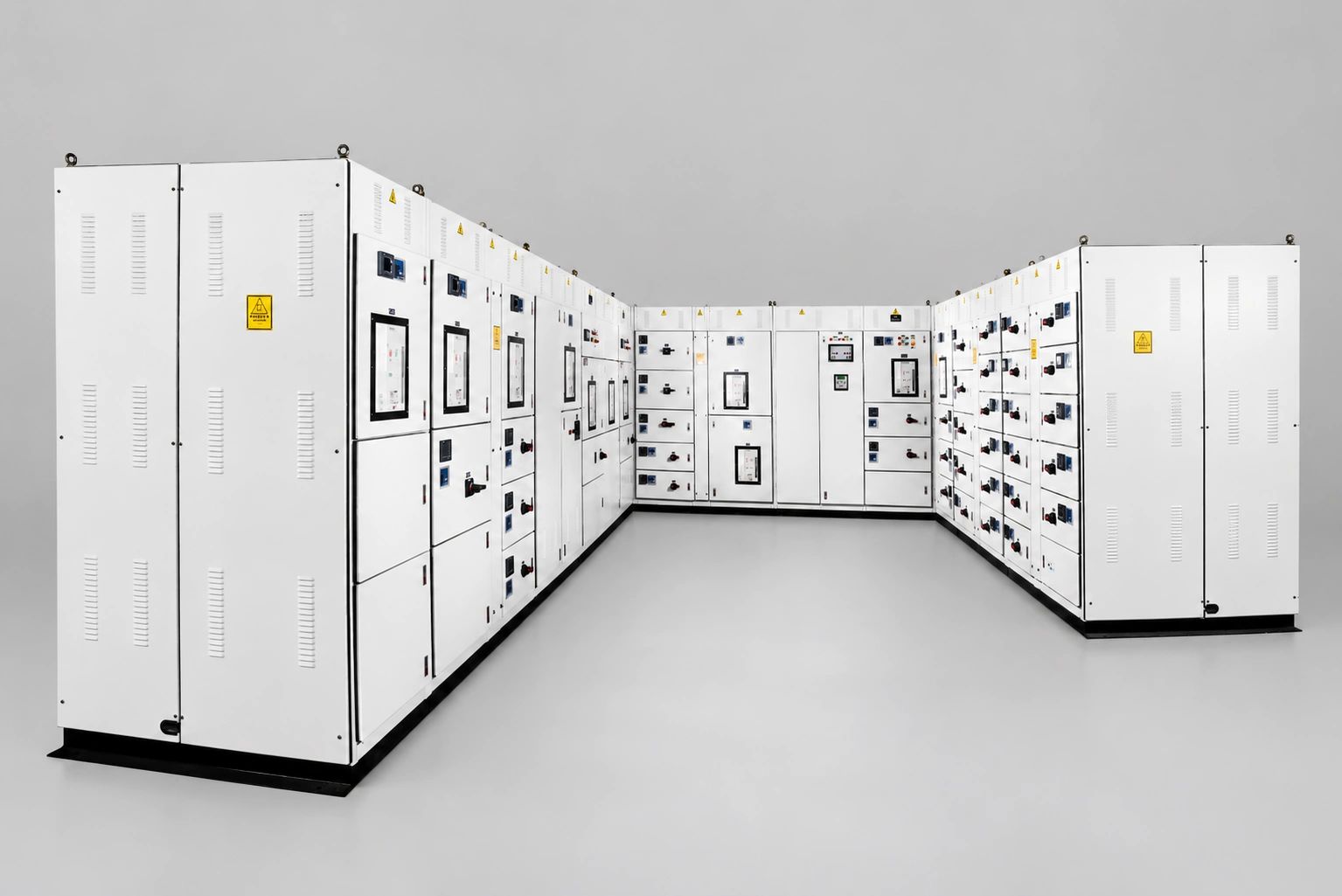

Main Switchboard / Essential Main Switchboard (MSB / EMSB)
Specification
-Floor Standing Modular Cubicle
-Form Of Separation : Form – 1, 2, 3 and 4
-Standard Height : 1900mm, 2260mm
-Standard Depth : 580mm, 1020mm, 1120mm, 1220mm
-Type Of Frameworks : Mild Steel / Electro-Galvanized Sheet
-Framework : 2.5mm
-Covers : 2.0mm
Power Factor Correction Board (PFC)
Specification
-Floor Standing Modular Cubicle
-Rated Capacitor Bank Voltage : 200V, 440V, 525V
-Detuned Reactors : 6%, 7%, 13% (only applicable to 525V)
-Built-in Ventilation Fan
-Type Of Frameworks : Mild Steel / Electro-Galvanized Sheet
-Framework : 2.5mm
-Covers : 2.0mm
AMF Switchboard (AMF)
Specification
-Floor Standing Modular Cubicle
-DC12V / 24V Control
-Framework : 2.5mm
-Covers : 2.0mm
Typical Tap Off Unit (TOU)
Specification
-Wall Mounted Type
-Housing / Covers : 1.5mm
-FR / MICC / Copper /
Aluminium Cable Riser
Weatherproof Street Lighting Feeder Pillar (FP)
Specification
-Floor Standing Weatherproof Type
-Housing / Covers : 1.5mm / 2.0mm / 2.5mm
-Padlockable Facility
-Photocell Switch Sensor Device (Optional)
Sub Switchboard (SSB)
Specification
-Wall Mounted Type
-Housing : 1.5mm / 2.0mm 2.0mm
-Covers : 1.5mm / 2.0mm
Distribution Board (DB)
Specification
-Wall Mounted Type
-Housing : 1.5mm / 2.0mm
-Covers : 1.5mm / 2.0mm
Meter Panels (MP)
Specification
-LV / HT Metering
-CT Metering
-Single Phase / Three Phase Direct Metering
-Housing : 1.5mm / 2.0mm
